Explain:

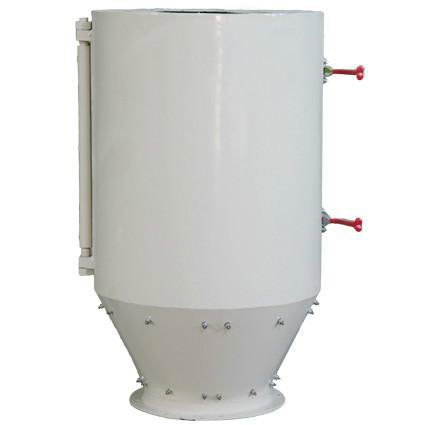

This type of equipment is used during processing to separate magnetic impurities from bulk materials. It has no power and is a kind of ideal magnetism removal equipment used in flour milling, rice milling, feed, food, medicine and other industries.
Characteristics:
1.Stainless steel materials are allowed
2.No power is needed
3.The magnet of the equipment is fixed on the door, which provides convenience for cleaning during which no shutdown is needed
4.High-performance permanent magnet is adopted, with long service life
Technical parameters:
|
Spec. & model |
Orifice diameter (mm) |
Magnetic induction intensity (MT) |
Output (t/h) |
Iron-removal efficiency (%) |
|
|
r=0.5 |
r=0.75 |
||||
|
TCXT-20 |
200 |
＞300 |
10-15 |
15-20 |
≥99 |
|
TCXT-25 |
250 |
＞300 |
20-25 |
25-30 |
≥99 |
|
TCXT-30 |
300 |
＞300 |
30-40 |
40-50 |
≥99 |
